The Cisco 350-501 Service Provider Core Technologies (SPCOR) exam is a critical step for professionals pursuing the CCNP Service Provider certification or the Cisco Certified Specialist – Service Provider Core credential. This exam assesses your expertise in core service provider technologies, including network architecture, routing protocols, MPLS, Quality of Service (QoS), and security.
To support your preparation, Leads4Pass has carefully selected 15 free practice questions from its newly updated collection of 509 practice questions. These questions are designed to simulate the real exam.
350-501 SPCOR Practice exam
Leads4Pass 350-501 SPCOR Practice Exam provides a complete set of authentic and effective practice questions and answers. Covering key topics such as OSPF, BGP, segment routing, and VPN technologies, these questions are designed to help you validate your prior learning, address knowledge gaps, and improve both speed and accuracy. Most importantly, over 90% of the practice exam closely mirrors real-world scenarios, ensuring it can help you achieve 100% success.
Get started now by trying your hand at the free 350-501 SPCOR practice questions.
Latest Free 350-501 SPCOR Practice Questions
Question 1:
An engineer is developing a configuration script to enable dial-out telemetry streams using gRPC on several new devices. TLS must be must the engineer apply on the network?
A. telemetry model-driven destination-group ciscotest address-family ipv4 192.168.1.0 port 57500 encoding self-describing-gpb protocol grpc tls-hostname ciscotest.com commit
B. telemetry model-driven destination-group DGroup1 address-family ipv4 172.0.0.0 port 5432 encoding self-describing-gpb protocol tcp commit
C. telemetry model-driven destination-group ciscotest address-family ipv4 192.168.1.0 port 57500 encoding self-describing-gpb protocol grpc no-tls commit
D. telemetry model-driven destination-group ciscotest address-family ipv4 192.168.1.0 port 57500 encoding self-describing-gpb protocol grpc commit
Correct Answer: C
Question 2:
Which open source cloud computing platform uses the neutron project as a networking as a service between devices like cisco nexus, cisco APIC cisco CSR 1000v and cisco UCS?
A. Ansible
B. Openstack
C. Cisco UCS director
D. Opendaylight
Correct Answer: B
Question 3:
Refer to the exhibit.
The application server in the data center hosts voice, video, and data applications over the internet. The data applications run more slowly than the voice and video applications. To ensure that all applications run smoothly, the service provider decided to implement a QoS policy on router PER 2 to apply traffic shaping. Which two actions must an engineer take to implement the task? (Choose two.)
A. Configure the scheduling function to handle delayed packets.
B. Enable packet remarking for priority traffic.
C. Configure a queue to buffer excess traffic.
D. Set the token value for secondary traffic.
E. Set a threshold to discard excess traffic.
Correct Answer: AC
Question 4:
Which module refers to the network automation using Ansible?
A. the iosxr_system module to collect facts from remote devices
B. the iosxr_user module to manage banners for users in the local database
C. the losxr_logging module to run debugging for seventy levels 2 to 5
D. the iosxr_command module to issue run commands on remote devices
Correct Answer: D
Question 5:
Exhibit: A network engineer must update the routing toward the web server with IP address 35.22.13.1. The primary path must be configured via the neighbor router with ID 1.1.1.1. However, local-preference configuration is not permitted on R1. Which task must the engineer perform on R1 to complete the implementation?
A. Configure the device to choose the best MED from the same AS.
B. Set the device to ignore the conditional MED if the route originated in a different autonomous system.
C. Enable MED comparison between routes from neighbors in different AS.
D. Implement deterministic MED to choose the best route from the different AS.
Correct Answer: B
Question 6:
The NOC team must update the BGP forwarding configuration on the network with these requirements:
1.
BGP peers must establish a neighborship with NSF capability and restart the session for the capability to be exchanged after 120 seconds.
2.
BGP peers must delete routes after 360 seconds of inactivity. Which action meets these requirements?
A. Set the BGP restart-time to 120 seconds and the BGP ha-mode sso to 360 seconds.
B. Set the stalepath-time to 120 seconds and the BGP restart-time to 360 seconds.
C. Set the BGP ha-mode sso to 120 seconds and the BGP restart-time to 360 seconds.
D. Set the BGP restart-time to 120 seconds and the stalepath-time to 360 seconds.
Correct Answer: D
Question 7:
Refer to the exhibit.
A network engineer is implementing a standard customer route-policy on ASBR1 with these requirements:
1.
It must accept only customer-assigned prefixes
2.
It must preserve customer advertised BGP communities
3.
It must set the local-preference to 110 for all prefixes
4.
It must attach the ORIGINATION-PE and LOCAL-CITY communities to all accepted prefixes.
Which route policy must the engineer implement on ASBR1 to satisfy the requirements?
A. Option A
B. Option B
C. Option C
D. Option D
Correct Answer: D
Question 8:
Refer to the exhibit. A service provider engineer is configuring the connection between CE1 and CE2. AS 200 of the service provider and AS 100 of enterprise ABC should connect using BGP. The engineer already completed the configuration of VRF RT 100:10 of enterprise ABC. Which configuration must the engineer apply on PE1 to meet the requirement?
A. Option A
B. Option B
C. Option C
D. Option D
Correct Answer: A
Question 9:
Refer to the exhibit.
A network operator working for a private telecommunication company with an employee id: 7138: 13:414 just added new users to the network, which resides in VLANs connected to routers R1 and R4. The engineer now must configure the network so that routers R1 and R4 share routes to the VLANs, but routers R2 and R3 are prevented from including the routes in their routing tables. Which configuration must the engineer apply to R4 to begin implementing the request?
A. pseudowire -class ciscotestencapsulation mpls
interface gigabitethernet 1/0/1
connect neighbor 192.168.1.1 101 pw-class cisco
B. pseudowire -class ciscotestencapsulation mpls
interface gigabitethernet 1/0/1
xconnect 192.168.1.1 101 pw-class ciscotest
C. pseudowire-class ciscotestencapsulation mplsservice-policy output ciscotest
D. interface serial 2/0/0frame-relay encapsulationip address 192.168.1.4 255.255.255.0service-policy output ciscotest
Correct Answer: B
Question 10:
Refer to the exhibit.
A Cisco engineer is implementing gRPC dial-out on an ASR. Receiver 192.168.1.1 will be assigned one of the subscriptions, and it will manage the ASR. Which command is needed to complete the router configuration?
A. protocol tcp
B. protocol any
C. protocol grpc
D. protocol all
Correct Answer: A
Question 11:
What is a primary benefit of IPoATM or MPLS over ATM backbone service provider networks?
A. dedicated circuits
B. variable-length packets
C. isochronous system
D. fixed-length cells
Correct Answer: A
Question 12:
Refer to the exhibit.
Router R1 is reporting that its BGP neighbor adjacency to router R2 is down, but its state is Active as shown. Which configuration must be applied to routers R1 and R2 to fix the problem?
A. R1
router bgp 5400
neighbor 11.11.11.11 remote-as 5400
neighbor 11.11.11.11 update-source Loopback0
R2
router bgp 5400
neighbor 11.11.11.12 remote-as 5400
neighbor 11.11.11.12 update-source Loopback0
B. R1
router bgp 5400
neighbor 2.2.2.2 remote-as 5400
neighbor 2.2.2.2 update-source Loopback0
R2
router bgp 5400
neighbor 1.1.1.1 remote-as 5400
neighbor 1.1.1.1 update-source Loopback0
C. R1
router bgp 5400
neighbor 2.2.2.2 remote-as 5400
R2
router bgp 5400
neighbor 1.1.1.1 remote-as 5400
D. R1
router bgp 5400
neighbor 1.1.1.1 remote-as 5400
neighbor 1.1.1.1 update-source Loopback0
R2
router bgp 5400
neighbor 2.2.2.2 remote-as 5400
neighbor 2.2.2.2 update-source Loopback0
Correct Answer: D
Question 13:
Refer to the exhibit.
A network administrator wants to enhance the security for SNMP for this configuration. Which action can the network administrator implement?
A. Add a community string to the existing entry.
B. Maintain the configuration but switch to an encrypted password for device access through SSH.
C. Re-configure to use SNMPv2 with MD5 authentication.
D. Re-configure to use SNMPv3.
Correct Answer: D
Question 14:
Which utility can you use to locate MPLS faults?
A. MPLS LSP ping
B. QoS
C. MPLS traceroute
D. EEM
Correct Answer: C
Question 15:

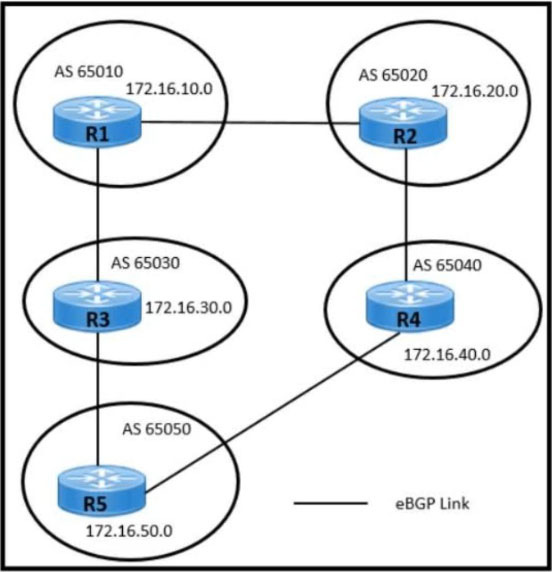

Users in AS 65010 are connected with the application server in AS 65050 with these requirements:
1.
AS 65010 users are experiencing latency and congestion to connect with application server 172.16.50.10.
2.
AS 65030 must be restricted to become Transient Autonomous System for traffic flow.
3.
Links connected to AS 65020 and AS 65040 are underutilized and must be used efficiently for traffic. Which two configurations must be implemented to meet these requirements? (Choose two.)
A. Apply the AS-Path route-map policy for traffic received from R3.
B. Configure the route map to prepend the AS-Path attribute for R5-R3 BGP peering.
C. Apply the MED route-map policy for traffic received from R4.
D. Configure a higher Local preference for R5-R4 BGP peering.
E. Configure the route map to set the MED 50 attribute for R5-R4 BGP peering.
Correct Answer: BE
